The following step by step guide explains:

How to convert the Woodford Model 22 mixer tap from hot water under pressure (standard) to gravity fed.

Tools needed:

Adjustable spanner
Flat Head Screwdriver
Mole Grips / Pliers

Time needed: 3 minutes
Scroll to the bottom to see the video.

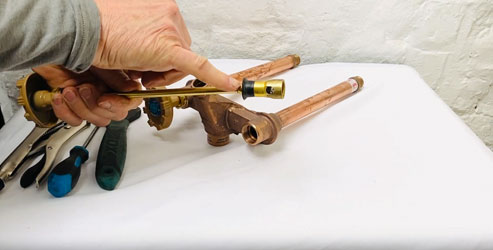

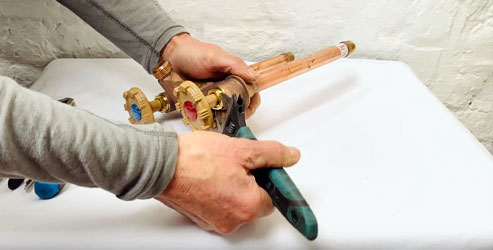

Step 1: Undo the stem nut and remove the stem.

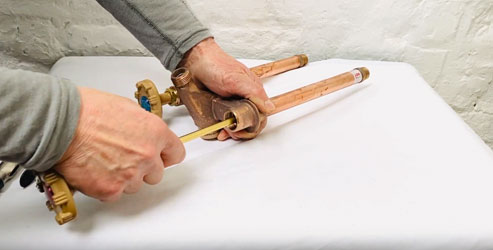

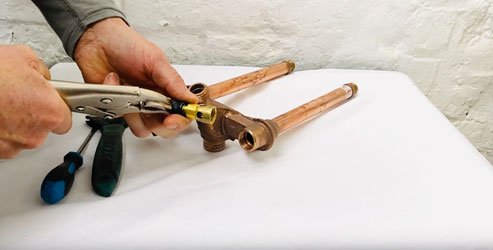

Step 2: Locate the rubber grommet, dislodge and slide down the stem.

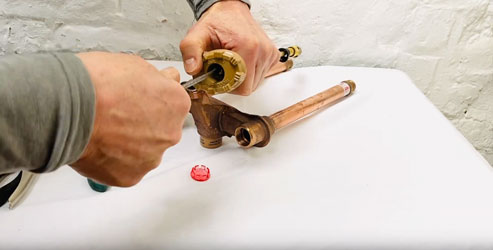

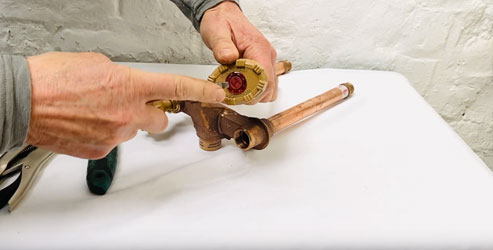

Step 3: Remove the red plastic hot cap and unscrew the handle.

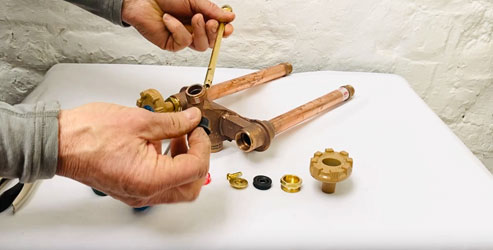

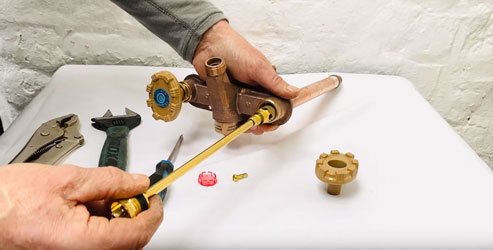

Step 4: Unscrew and remove the spacer, washer and nut. Then slide the grommet off the stem.

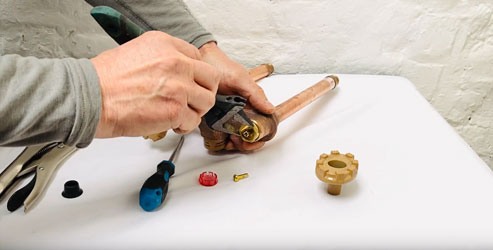

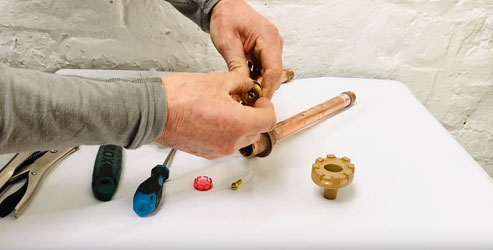

Step 5: Reassemble the stem using the spacer, washer and nut and reinsert the stem back into the pipe. Then tighten the stem nut.

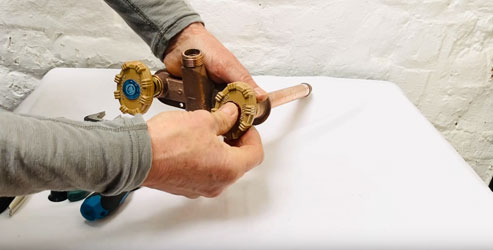

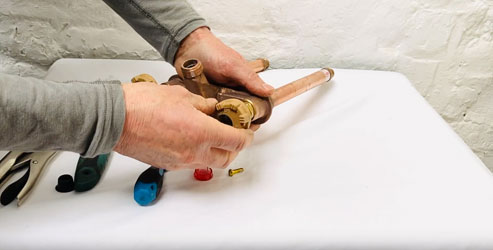

Step 6: Reattach the handle and press the red plastic hot cap back in place.

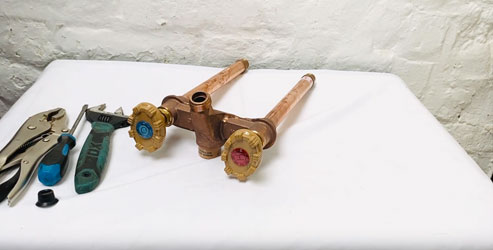

Step 7: Finally, don't forget to store the grommet for future use. Your tap is now ready for gravity hot water feed.


Video: How to convert the Woodford Model 22 mixer tap from hot water under pressure (standard) to gravity fed.
